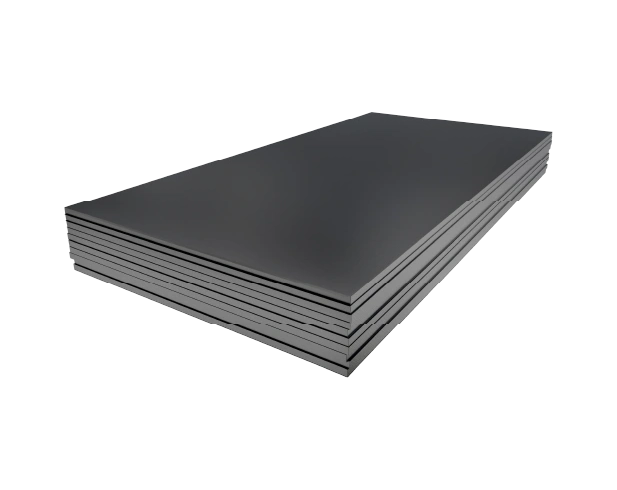

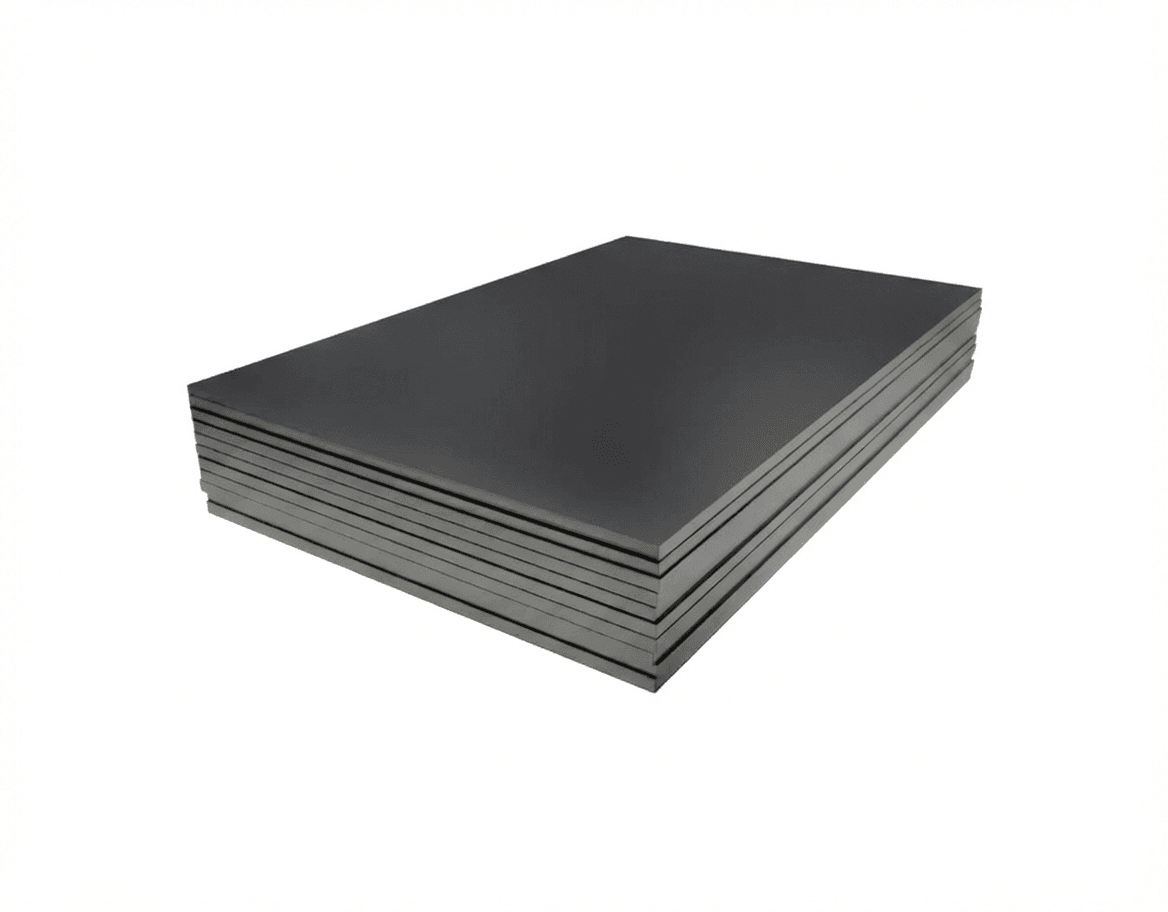

JSW Steel Hot Rolled Sheets IS 3502:2004 E250A

JSW Steel Hot Rolled Sheets IS 3502:2004 E250A

Brand: JSW Steel
Overview
Product information

Produced in a state-of-the-art plant, hot rolled products have:

  1. High strength
  2. Fine surface quality and formability
  3. Can be used for several different applications such as infrastructure, general engineering, pipes and automotive
Supply condition

As rolled, mill edge, unpickled, unoiled

Packaging

Straps. Packaging charges are included in the price

Overview
Tolerance properties
Chemical composition
Mechanical Properties
Tolerance properties
Chemical composition
Mechanical Properties
*Width (mm)
W<1500 mm 0 to 20 mm
W>1500 mm 0 to 25 mm
*Thickness (mm)
1.6 - 2.0 + 0.12
2.01 - 3.0 + 0.15
3.01 - 6.0 + 0.2
6.01 - 8.0 +0.25
8.01 - 12.0 +0.3
12.01 - 15.0 +0.4
15.01 - 20.0 + 0.4
20.01 - 25.0 +0.45
Flatness
T< 2 mm: 40 mm max
T>2 mm as per EN
Camber
20 mm max in 5 meter length except ID/OD
*Tolerance type
AS_STD
