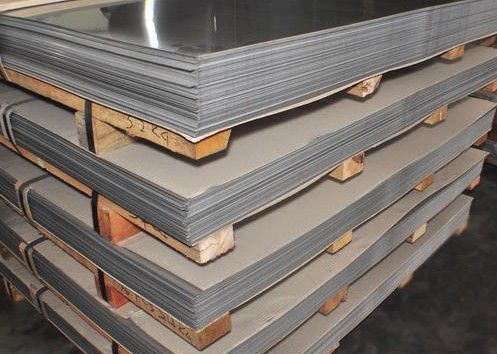

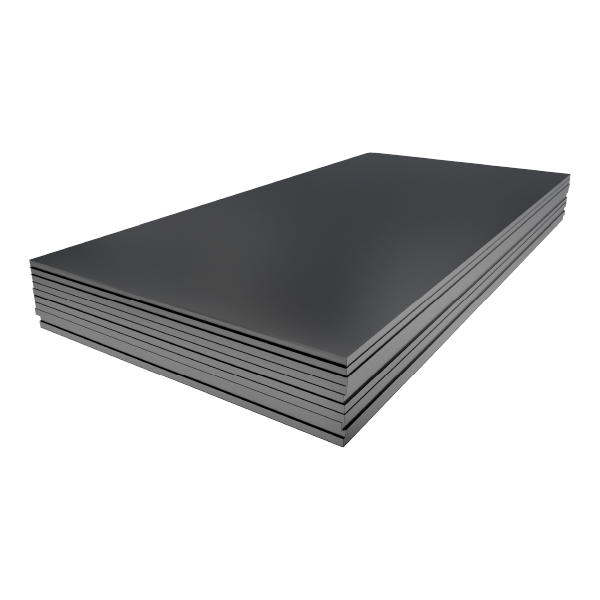

JSW Steel Hot Rolled Sheets IS 2062:2011 E350B0

Brand: JSW Steel
Tolerance properties
Chemical composition
Mechanical Properties
Tolerance properties
Chemical composition
Mechanical Properties
*Width (mm)
W<1500 mm 0 to 20 mm
W>1500 mm 0 to 25 mm
*Thickness (mm)
1.6 - 2.0 + 0.12
2.01 - 3.0 + 0.15
3.01 - 6.0 + 0.2
6.01 - 8.0 +0.25
8.01 - 12.0 +0.3
12.01 - 15.0 +0.4
15.01 - 20.0 + 0.4
20.01 - 25.0 +0.45
Flatness
T< 2 mm: 40 mm max
T>2 mm as per EN
Camber
20 mm max in 5 meter length except ID/OD
*Tolerance type
AS_STD
