TMT bar full form, grades (Fe 500, Fe 550, Fe 600) and standard sizes
In Indian site vocabulary, TMT is widely known as TMT rod or TMT sariya, though its technical scope falls under IS 1786:2008, the Bureau of Indian Standards (BIS) specification for high-strength deformed steel bars and wires. This guide covers the manufacturing process, Indian grade classifications, standard sizes, grade selection considerations and coastal durability factors relevant to procurement decisions aligned with the bar bending schedule.
TMT bar full form and how it is made
TMT stands for Thermo-Mechanically Treated, a controlled thermal process applied to hot-rolled deformed steel bars used as concrete reinforcement.

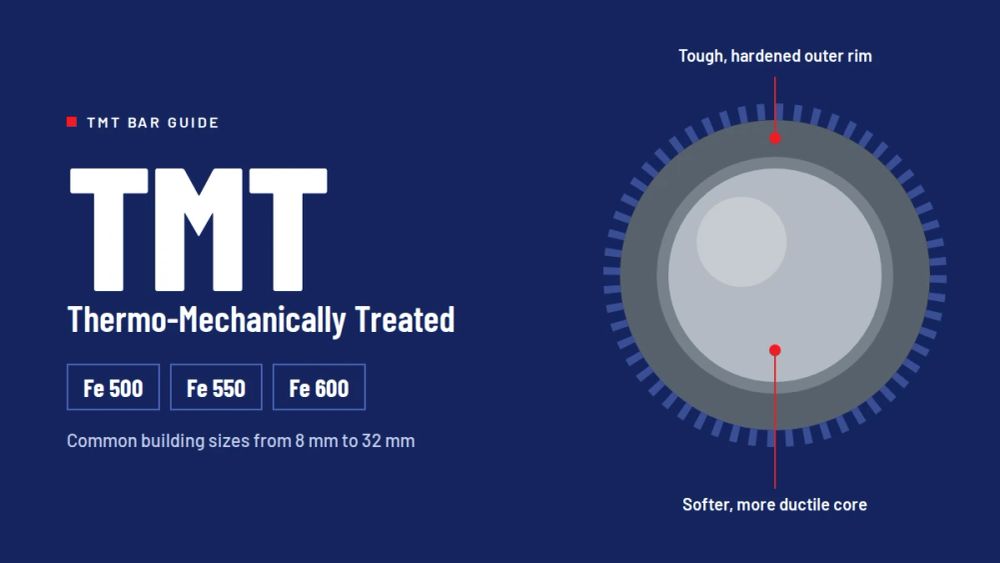

The manufacturing process starts with steel making followed by continuous casting, hot rolling steel billets into bar form. Immediately after rolling, the bar undergoes rapid water quenching, which hardens the outer surface. Residual heat from the core then tempers this hardened layer, creating a bar with a tough outer rim and a softer, more ductile inner core. This dual structure delivers the combination of strength and flexibility that RCC design relies on.
The ribs or deformations on a TMT bar are functional, not cosmetic. BIS notes that these surface projections reduce slippage and strengthen the bond between steel and surrounding concrete.
TMT grades: Fe 500, Fe 550, Fe 600
“Fe” stands for iron (ferrum), and the number indicates the yield-strength class in N/mm². BIS classifies these grades under IS 1786:2008, and each grade family carries defined mechanical properties, including proof stress, tensile strength and elongation. The grade on the structural drawing determines what to procure.
Fe 500
Fe 500 is the general-purpose reinforcement category, commonly specified for residential buildings and routine RCC work. Its suitability depends on whether the structural engineer's drawings and bar bending schedule call for this yield-strength class, not on a generic assumption that all houses use Fe 500. BIS recognises Fe 500 along with its ductility variants under IS 1786:2008 licensing.
Fe 550
Fe 550 carries a higher specified yield-strength class than Fe 500, which can allow the designer to adjust bar arrangements or spacing where the structural calculations support it. The decision between the two grades should follow the design, not price or availability.
Fe 600
Fe 600 is a still higher-strength class within the IS 1786:2008 scope, added to the standard by a later amendment. It is typically considered for heavy structural applications or where reducing reinforcement congestion is a design priority, subject to RCC design checks and code compliance. Fe 550D pairs the Fe 550 strength tier with a ductility designation, while Fe 600 represents a higher strength class without the D-grade ductility checks.
D-grades explained: Fe 500D and Fe 550D
The “D” suffix in grades such as Fe 500D and Fe 550D marks a ductility-focused variant within the IS 1786:2008 grade families. These grades face higher requirements on elongation and total elongation at maximum force, both recorded on the BIS test certificate. Greater ductility allows a bar to absorb more energy and undergo more deformation before failure.
Fe 550D combines higher strength with higher ductility, relevant where designs demand both properties. IS 13920:2016 governs ductile design and detailing of reinforced concrete structures under seismic forces, so D-grade selection should follow seismic zone classification and detailing norms rather than being treated as a universal upgrade over non-D grades. For a direct comparison of the two ductility grades, see our guide to Fe 550 vs Fe 550D TMT bars.
Standard TMT bar sizes and lengths
TMT bars are produced in a defined diameter range, and the standard length supplied in India is commonly 12 m per piece. BIS licensing under IS 1786:2008 covers nominal sizes of 4, 5, 6, 8, 10, 12, 16, 20, 25, 28, 32, 36, 40, 45 and 50 mm; other sizes may be agreed between buyer and manufacturer.
Parameter | Reference point |
| Diameter | Match the nominal size on drawings/BBS with IS 1786:2008 recognised sizes |
| Length | 12 m fixed length is a common supply specification; confirm against the quotation |
| Unit weight | Verify mass per metre against IS 1786:2008 tolerances and the manufacturer's test certificate |
Size-to-application mapping follows the structural design. Smaller diameters (8 mm, 10 mm) are commonly scheduled for slabs, stirrups and distribution steel, while larger diameters (20 mm, 25 mm, 32 mm) are typically specified for beams, columns and footings. Cross-referencing available stock against the bar bending schedule before ordering helps prevent site delays.
Choosing a grade for your project
Grade selection is a design-led decision, shaped by structure type, load path, seismic zone, exposure conditions and the structural engineer's detailing. Strength class alone does not determine suitability, and no single grade is universally correct. Fe 500D may suffice for many residential RCC designs, while Fe 550D may benefit projects requiring higher strength with ductility; switching grades affects spacing, lap lengths and anchorage, all of which the designer must recalculate.
For high-rise construction, Fe 550D or Fe 600 are often evaluated where designs need higher strength or congestion reduction, but the final grade must emerge from structural calculations and applicable ductile detailing requirements rather than a generic recommendation. For a broader walkthrough of this decision, see our guide on choosing the right TMT bar grade.
Price factors for TMT bars
TMT bar pricing moves with several variables worth checking at quotation stage:
Base steel and billet or scrap price, which moves with raw-material markets
Diameter, since smaller and larger sizes carry different mill premiums
Grade and ductility class, for example Fe 500 against Fe 550D or Fe 600
Order quantity and whether it fills a standard truckload lot
Delivery location, freight and unloading arrangements
Check current TMT bar specifications and pricing on JSW One MSME before finalising your order.
Application and grade guide
The table below maps common structural elements to the grade and diameter range typically specified for them.
Structural element | Typical grade considered | Typical diameter range |
| Slabs, stirrups, distribution steel | Fe 500, Fe 500D | 8–10 mm |
| Beams and columns | Fe 500D, Fe 550D | 12–25 mm |
| Footings and heavy structural members | Fe 550D, Fe 600 | 25–32 mm |
| Structures in high seismic zones | D-grade variants per IS 13920:2016 detailing | Per structural drawing |
This mapping reflects common structural-engineering practice, not a requirement prescribed directly by IS 1786:2008. The structural engineer's drawings and bar bending schedule always govern the actual grade and diameter to procure.
Corrosion and coastal considerations
Corrosion resistance in reinforced concrete is a system-level outcome rather than a property of the TMT bar alone. Coastal durability depends on concrete quality, adequate cover thickness, crack control, exposure classification, chloride risk and ongoing maintenance. IS 456:2000, reaffirmed in 2021, provides durability provisions for plain and reinforced concrete that address these factors.
Corrosion-resistant steel (CRS) variants can be specified for aggressive exposure conditions, and some manufacturers offer CRS product lines within their TMT range. CRS bars do not eliminate the need for proper cover, dense concrete, thorough curing and effective waterproofing. Always verify corrosion performance claims against the current manufacturer datasheet and test certificate.
The last word
The TMT bar full form, Thermo-Mechanically Treated, describes the process that gives reinforcement steel its characteristic strength and ductility. Beyond the name, procurement decisions rest on selecting the correct grade (Fe 500, Fe 550 or Fe 600), specifying the right ductility variant where seismic detailing demands it, and ordering the precise diameter and length from the structural schedule. Every specification should trace back to the engineer's drawings and IS 1786:2008 compliance.
Source certified TMT bars and request current pricing on JSW One MSME, or consult directly with certified manufacturers.
Key takeaways
· TMT stands for Thermo-Mechanically Treated; the product is certified in India under IS 1786:2008.
· Fe 500, Fe 550, Fe 600, Fe 500D and Fe 550D are all genuine IS 1786:2008 grade designations; none should be substituted for another without the structural engineer's sign-off.
· The “D” suffix marks a ductility-focused variant, relevant where IS 13920:2016 seismic detailing applies.
· Standard supply length is commonly 12 m; nominal diameters run from 4 mm to 50 mm under IS 1786:2008.
· Coastal durability is a system-level outcome (cover, concrete quality, curing) and not solved by grade choice alone; IS 456:2000 sets the durability provisions.
FAQs
1. What is the full form of TMT bar?
TMT stands for Thermo-Mechanically Treated. It describes the quenching and self-tempering process applied to hot-rolled deformed reinforcement bars, as defined under IS 1786:2008.
2. What is the difference between Fe 500 and Fe 550 TMT bars?
Fe 550 carries a higher specified yield-strength class. It may allow altered bar spacing in design, but only when the structural engineer's calculations and detailing permit the change.
3. What does the D in Fe 500D mean?
“D” identifies a ductility-focused variant with stricter elongation requirements under IS 1786:2008. It is particularly relevant for structures in seismic zones requiring ductile detailing per IS 13920:2016.
4. Which TMT grade is best for high-rise construction?
No single grade is universally correct. Fe 550D or Fe 600 are commonly evaluated for high-rise designs, but selection must follow the structural engineer's calculations and applicable code requirements.
5. What is the standard length of a TMT bar?
Manufacturers commonly supply TMT bars in 12 m fixed-length pieces. Confirm the exact length against the supplier's quotation and test certificate before placing orders.
6. Which TMT bar is best for coastal areas?
No single bar guarantees coastal durability. Effective protection requires adequate cover, dense concrete, proper curing, CRS variants where specified, and compliance with IS 456:2000 durability provisions.
7. What is the difference between Fe 550 and Fe 550D?
Fe 550D is the ductility variant within the Fe 550 strength family, requiring higher elongation values. Compare manufacturer test certificates for proof stress, tensile strength and elongation data.
8. What TMT bar sizes are available?
IS 1786:2008 covers nominal diameters from 4 mm to 50 mm. Common building sizes include 8, 10, 12, 16, 20, 25 and 32 mm. Procure only the diameters specified in the structural drawings.
