JSW Neosteel Fe500D CRS TMT Rebar

Brand: JSW Steel

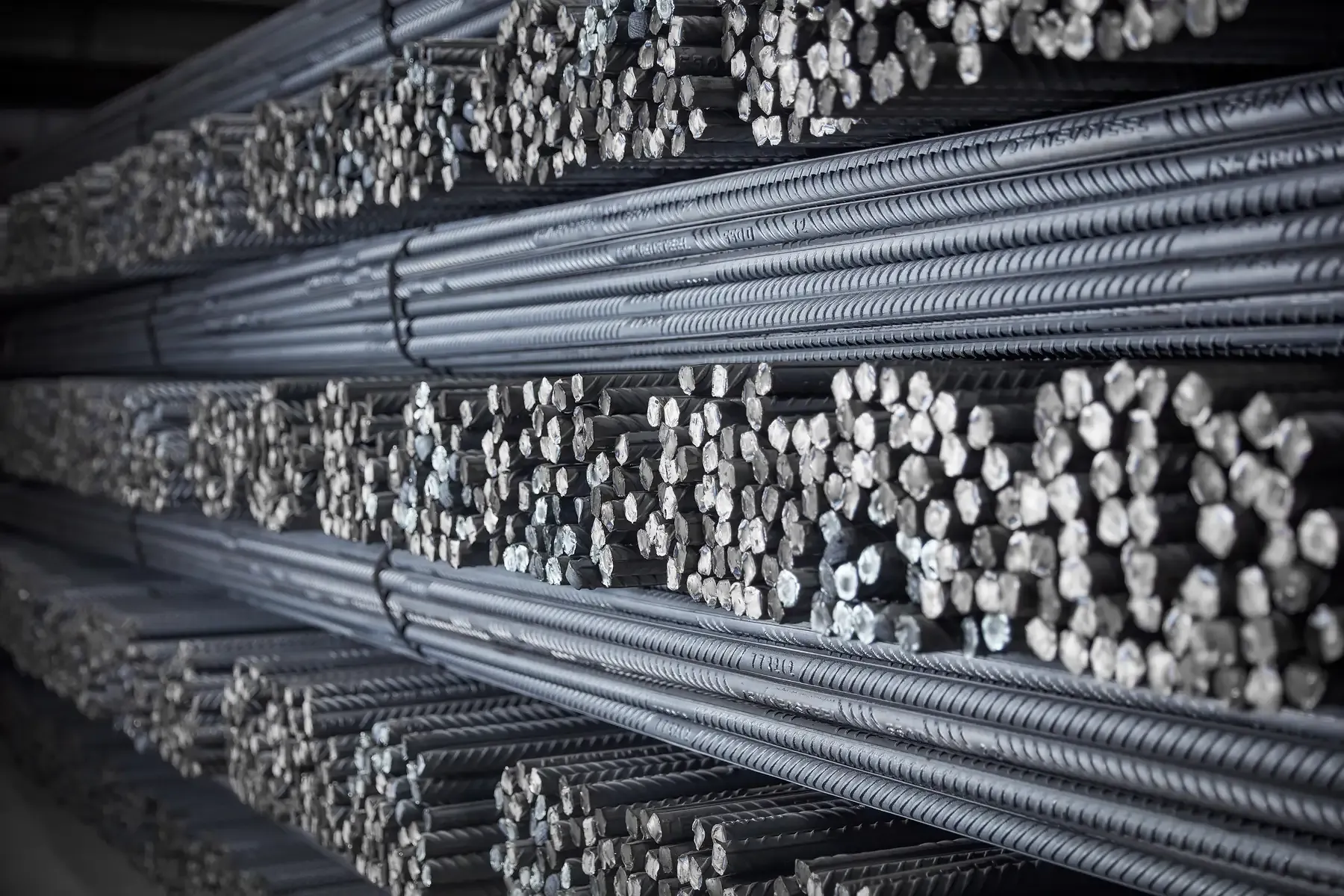

Product image

JSW Neosteel Fe500D CRS TMT Rebar

Brand: JSW Steel
Overview
Product information

High strength and high ductility TMT rebars

Application

  • Residential & commercial projects

  • Projects like metros, bridges, highways etc. as well as specialised infrastructure projects like nuclear power plants

  • Earthquake-prone areas due to a high value of percentage elongation

Item details
Brand name
Supply condition
Packaging

TMT bars are packaged as both bent and straight bars. Bending and bundling charges are included in the price.

Bent TMT bars are preferred if the required quantity is less than 20 MT to save on freight charges.

Overview
Tolerance properties
Mechanical properties
Chemical properties
Bend properties
Tolerance properties
Mechanical properties
Chemical properties
Bend properties
Tolerance Wt/m (%)
8mm = +0/-7%
10mm = +0/-7%
12mm = +0/-5%
16mm = +0/-5%
20mm = +0/-3%
25mm = +0/-3%
28mm = +0/-3%
32mm = +0/-3%
36mm = +0/-3%
40mm = +0/-3%

Maximum Wt/m (kg/m)
8mm = 0.395
10mm = 0.617
12mm = 0.888
16mm = 1.58
20mm = 2.47
25mm = 3.85
28mm = 4.83
32mm = 6.31
36mm = 7.99
40mm = 9.86
