Ador Tenalloy Z Plus E7018-1 C-Mn Steel Welding Electrode

Brand Ador
null

Ador Tenalloy Z Plus E7018-1 C-Mn Steel Welding Electrode

Brand Ador

Select attributes

Reset selection
Overview

Product information
Welding electrode with excellent mechanical & impact properties at low temperature

Features
  • Basic coated iron powder type
  • Suitable for pipe welding in 5G, 6G & 6GR positions
  • Excellent toughness down to -45ºC
  • Radiographic weld deposit
  • All position welding capability

Applications
  • Storage tanks, pipes, boilers
  • Bridges & heavy structures subject to dynamic loading
  • Joining steel of grades ASTM SA 414/414M Gr.C/D, SA 516/516M Gr.55/60, IS 2002 and IS 2062

Item details
Brand
Ador
AWS Code
E7018-1
Certifications
ABS/BV/DNV/IRS/LRA/IBR/NPCIL/MND

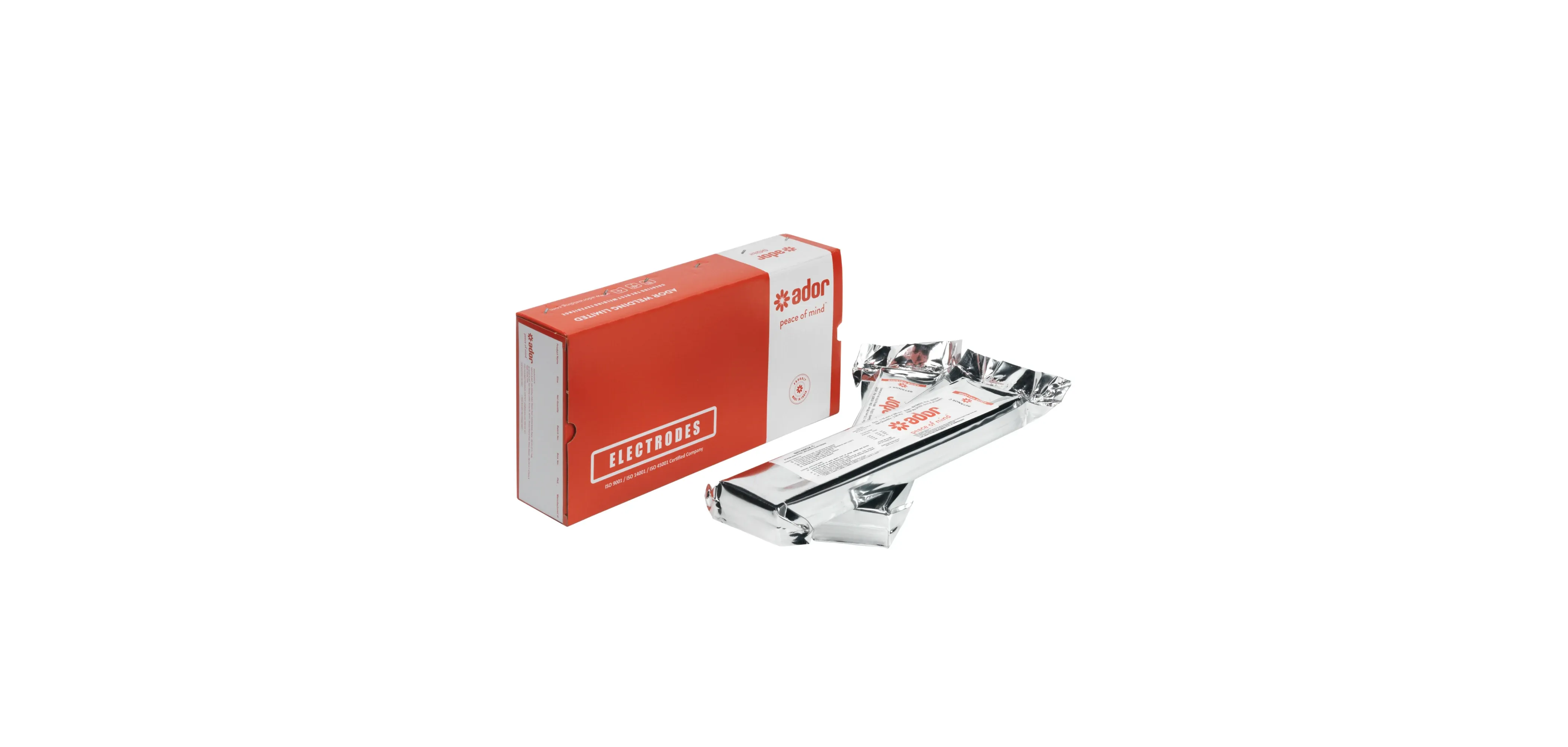

Packaging
Number of pieces per box
  • 2.5 mm x 350 mm : 956
  • 3.15 mm x 450 mm : 452
  • 4 mm x 450 mm : 300
  • 5 mm x 450 mm : 204
Overview
Mechanical Properties
Chemical Composition
Mechanical Properties
Chemical Composition
Condition
As welded
UTS, Min (MPa)
490
UTS, Typical (MPa)
560
YS at 0.2% offset, Min (MPa)
400
YS at 0.2% offset, Typical (Mpa)
480
Elongation %
22
Elongation %, Typical
27
