Choosing the right grade of wire rod for your specific application

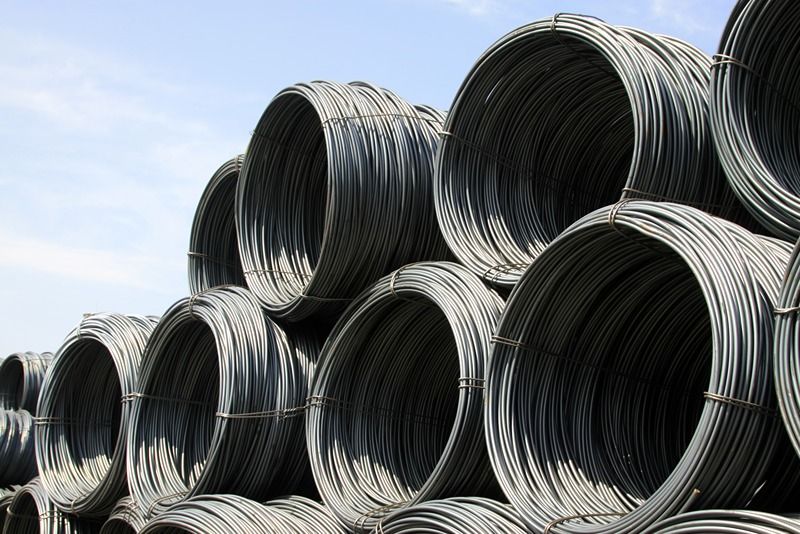

Wire rod is a semi-finished hot-rolled product made from hot billets of steel. Understanding the different grades and alloys of wire rods is crucial for selecting the appropriate material for specific applications. Here's a breakdown:

Carbon steel wire rod: this is the most common type of wire rod. It's primarily made of iron and carbon, with trace amounts of other elements. Carbon steel wire rod is known for its strength and durability and is used in various applications, including construction, automotive, and industrial manufacturing. Medium carbon steel wire rods from grades 1030 - 1050 with higher carbon content are more robust and harder and are ideal for springs, automotive parts, and machinery components.

Alloy steel wire rod: alloy steel wire rod contains additional alloying elements such as chromium, nickel, molybdenum, or vanadium in various proportions. These alloys enhance specific properties of the wire rod, such as strength, hardness, and corrosion resistance. Alloy steel wire rod is often used in applications requiring higher strength or specialised properties, such as automotive components, machinery parts, and high-stress applications.

Stainless steel wire rod: stainless steel wire rod contains a minimum of 10.5% chromium, nickel, or other elements to provide corrosion resistance and other desirable properties. It's commonly used in applications where corrosion resistance is critical, such as marine environments, food processing equipment, and medical instruments.

High carbon wire rod: High Carbon Steel Wire Rods from 1060-1095 grade are widely used in high-strength wires, piano wires, and industrial springs owing to their exceptional strength and toughness. It's known for its high tensile strength and is used in applications requiring robust and durable wire products such as springs, cables, and wire ropes.

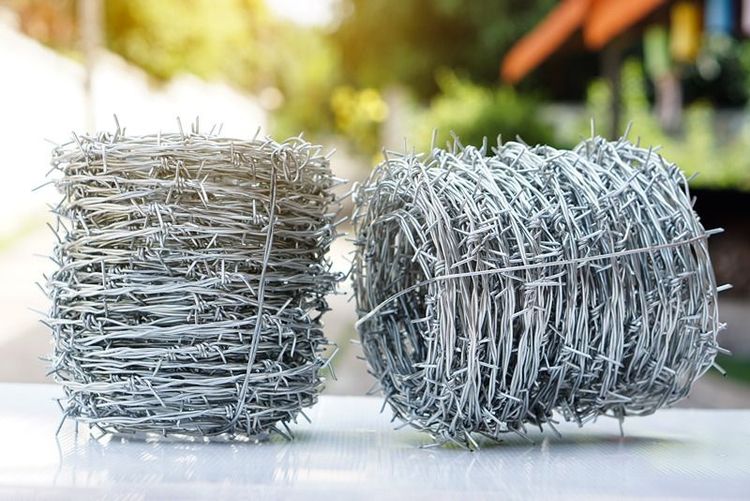

Low carbon wire rod: low carbon wire rods of grade 1006-1018 contain a lower carbon percentage than standard carbon steel wire rods. It's more ductile and malleable, making it suitable for applications where flexibility and formability are essential, such as wire mesh, fencing, and nail production. JSW Steel Wire Rod Coils come in various grades and specifications catering to industrial applications. Let's delve into each product:

JSW Steel Wire Rod Coils IS 2879:1998 EWNR


• These coils adhere to the IS 2879:1998 EWNR standard, indicating compliance with Indian Standards for Engineering Wire Rods for Welding Electrodes.
• They are known for superior re-drawability and flexibility and are suitable for various welding applications.
• They are commonly used in manufacturing welding electrodes due to their weldability and quality.

JSW Steel Wire Rod Coils IS 7887:1992 SAE1008


• These coils are characterised by their strength and ductility, making them ideal for wire mesh, fasteners, and reinforcement bars.
• SAE1008 grade steel is often used in automotive components and construction materials due to its formability and weldability.


JSW Steel Wire Rod Coils IS 7887:1992 SAE1018


• Meeting IS 7887:1992 standards with SAE1018 designation, these coils are engineered for enhanced strength and machinability.

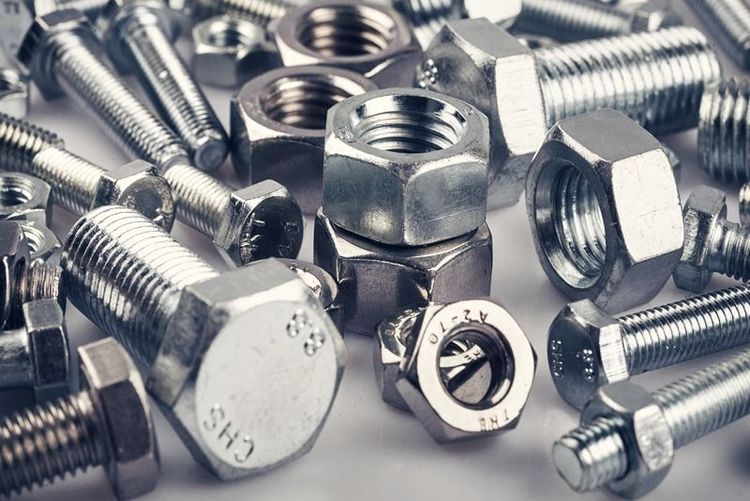

• SAE1018 grade steel is widely utilised in manufacturing processes where precise machining and good surface finish are essential, such as in the production of bolts, screws, and hydraulic fittings.

JSW Steel Wire Rod Coils IS 7887:1992 SAE1006


• Conforming to IS 7887:1992 standards and designated SAE1006, these coils balance strength and formability.
• SAE1006 grade steel is commonly employed in applications requiring cold-forming properties, such as in producing wires, nails, and rivets.


JSW Steel Wire Rod Coils IS 7887:1992 SAE1010


• Manufactured according to IS 7887:1992 standards and categorised as SAE1010, these coils are renowned for their weldability and surface finish.
• SAE1010 grade steel finds widespread use in fabricating automotive parts, tubes, and general engineering components where welding and surface quality are critical.

JSW Steel Wire Rod Coils AWS A5.18:2005 ER70S6


• Compliant with American Welding Society (AWS) A5.18:2005 standards and classified as ER70S6, these coils are formulated explicitly for welding applications.
• The filler metal is marked with "ER" if it is an electrode or rod; "70" indicates its tensile strength of 70,000 pounds per square inch (psi), while "S" signifies that it is a solid wire and used for Metal Inert Gas (MIG) welding.
• ER70S6 grade steel wire rods offer excellent weldability and are suitable for welding mild and carbon steels in various industries such as construction, automotive, and fabrication.


When selecting a wire rod for a particular application, factors such as mechanical properties, corrosion resistance, formability, and cost should be considered to ensure optimal performance and cost-effectiveness. Additionally, industry standards and specifications should be followed to meet regulatory requirements and ensure product quality and safety.
