TMT bars in residential construction

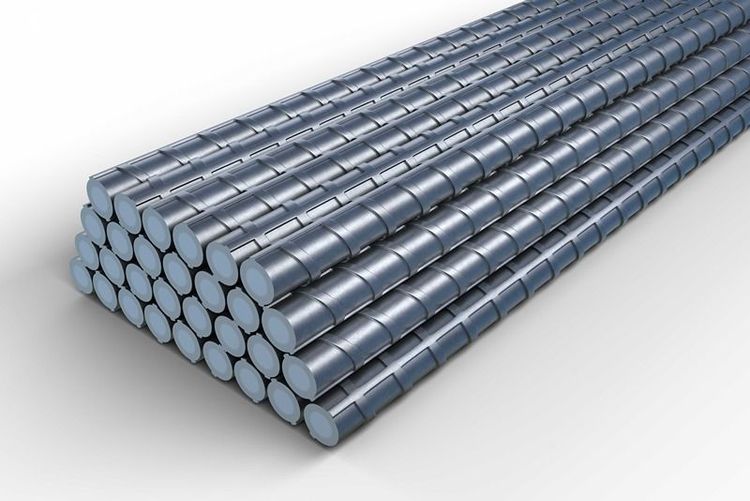

TMT (thermo-mechanically treated) bars are critical in residential construction due to their superior strength, durability, and flexibility. These bars primarily reinforce concrete and enhance buildings' structural integrity. Here's a detailed look at the role and benefits of TMT bars in residential construction: What are TMT bars? TMT bars are high-strength reinforcement bars with a rigid outer layer and soft inner core. The manufacturing process involves:
Thermo-mechanical treatment: this process combines mechanical deformation and thermal processing to improve the properties of the steel.
Quenching: right after rolling, a red hot steel bar is passed through a rapid water-cooling system to enhance the strength of the outer layer while the core remains softer. This cooling happens very fast, so the outside becomes hard while the inside remains hot. The quick cooling forms a hard layer called martensite outside the bar.
Self-tempering: the bar's inside, which is still hot, cools down slowly. As it cools, the inside changes into different types of steel phase mixtures called ferrite and perlite, which are not as hard as martensite but are more flexible.
Self-Tempering: The heat from the inside of the bar moves outwards, making the hard outer layer even more challenging with improved ductility and free from residual stress.
Atmospheric cooling: final cooling at room temperature retains the core's ductility and flexibility.

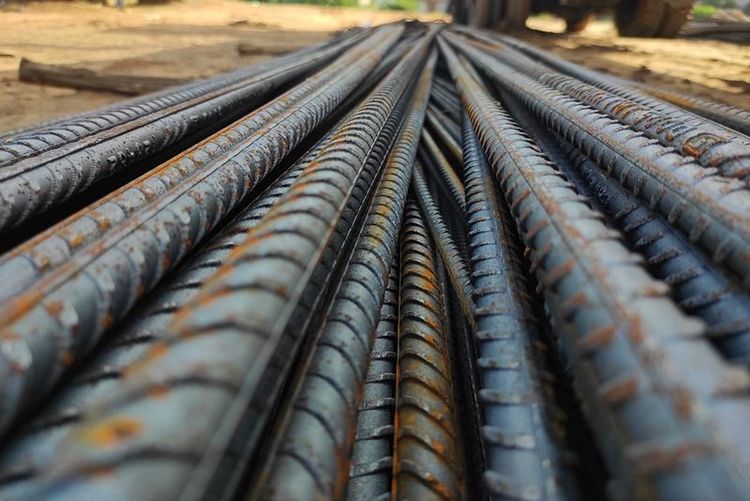

Benefits of using TMT bars in residential construction High strength: TMT bars, like JSW One TMT and Kalika Fe550 TMT Rebar, have high tensile strength, essential for building stability. They can withstand substantial loads without failure. The mechanical strength of TMT bars is achieved through a controlled process of rapid quenching and tempering, which forms a combination of the hard martensitic layer with a soft, ductile ferrite-pearlite core, resulting in a product that can sustain heavy loads over extended periods without deformation or failure. Ductility: the soft core of TMT bars allows for greater flexibility, reducing the risk of sudden failure during seismic activity. The bars absorb and dissipate energy during an earthquake, thereby reducing the risk of catastrophic structural failures. Corrosion resistance: the manufacturing process imparts a high degree of corrosion resistance, ensuring longevity even in humid or saline environments. Bonding with concrete: The perfectly shaped ribs on TMT bars provide a better grip on concrete. This enhanced bonding ensures efficient load transfer between the concrete matrix and the steel reinforcement, essential for the composite action in reinforced concrete structures. The improved adhesion minimises slippage. Fire resistance: TMT bars can withstand high temperatures, making them more fire-resistant than conventional steel bars. The high thermal stability of TMT bars ensures that they retain their strength and structural integrity for a longer time. Cost-effective: despite their superior qualities, TMT bars are cost-effective due to reduced steel consumption, as they are more robust and durable. Applications in residential construction
Foundation: TMT bars ensure a strong base that can support the weight of the entire structure.
Columns and beams are critical components in residential buildings, providing vertical and horizontal support. TMT bars enhance their load-bearing capacity.
Slabs: reinforcing slabs with TMT steel help distribute loads evenly and prevent cracks and other structural issues.
Walls: in load-bearing walls, TMT bars provide additional strength and stability.
Selection criteria for TMT bars When choosing TMT bars for residential construction, consider the following: Grade: TMT rebars come in different grades, such as FE 415, FE 500, FE 550, etc., indicating their minimum yield strength. Higher grades are used for high-rise buildings. Certification: ensure the bars meet relevant industry standards (e.g., ISI certification in India). Manufacturer reputation: opt for well-known brands that ensure product quality and consistency. On our website, you will get equality materials from verified sellers. TMT steel are integral to modern residential construction, offering a blend of strength, durability, and flexibility that enhances building safety and longevity. Their advantages regarding resistance to natural elements and structural stability make them the preferred choice for reinforcing concrete structures. When planning a residential project, incorporating high-quality TMT rebars can ensure the building remains robust and durable for years.
