How to match the grade of concrete with TMT bars for better structural performance.

Category Business | Posted on July 16, 2025

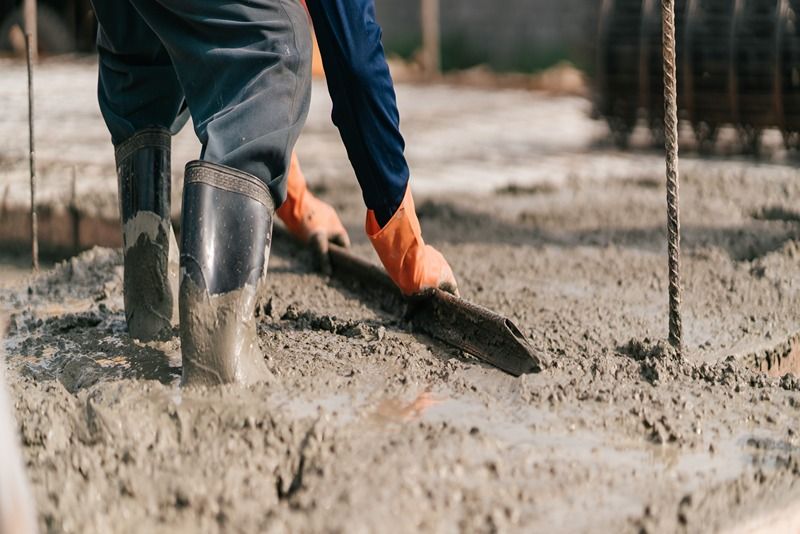

How to match the grade of concrete with TMT bars for better structural performance.-image

In the world of construction, structural performance hinges on the right blend of compressive and tensile strength. Concrete provides the former; TMT bars the latter. But matching their grades is not merely a technical detail—it is a crucial design choice. If these components are poorly paired, buildings can develop premature cracks, underperform during earthquakes, or suffer from durability issues in harsh climates.

This article explores how to correctly pair concrete grades with TMT bar grades, ensuring balance, safety, and cost-efficiency for every type of project.

Start with structural needs: determine your load class

Low-rise buildings and internal components

  • Recommended pairing: M20 concrete + Fe415 TMT bars
  • Use case: Homes up to two storeys, internal slabs, stairs
  • Why: Adequate compressive strength and ductility for small live loads

Mid-rise and commercial buildings

  • Recommended pairing: M25 concrete + Fe500 or Fe500D TMT bars
  • Use case: Apartment blocks, retail spaces, office buildings
  • Why: Balanced tensile and compressive strength for moderate dynamic loads

Industrial or heavy load structures

  • Recommended pairing: M30/M35 concrete + Fe550 TMT bars
  • Use case: Factories, warehouses, industrial floors
  • Why: Higher resistance to vibration, shear, and concentrated loads

Infrastructure and high-rise towers

  • Recommended pairing: M40 and above + Fe600 TMT bars
  • Use case: Flyovers, bridges, towers above 15 floors
  • Why: Exceptional structural rigidity and fatigue resistance

Match based on environment: account for exposure conditions

Coastal or saline environments

  • Use corrosion-resistant Fe500D/Fe550D bars
  • Combine with high-density M30+ concrete to reduce permeability

Seismic zones

  • Use ductile TMT bars (Fe500D or Fe550D)
  • Avoid brittle combinations like M20 + Fe550

High temperature or fire-prone zones

  • Ensure concrete has good heat-resistance (M30 and above)
  • Use Fe500 or higher bars with verified fire-resistance ratings

Avoid mismatches: common pairing mistakes to steer clear of

Fe600 TMT bars with M20 concrete

  • Issue: Over-strengthened reinforcement does not bond effectively
  • Result: Cracking, delamination, inefficient stress transfer

Fe415 bars with M35 concrete

  • Issue: Tensile strength lags behind compressive capacity
  • Result: Poor resistance to bending and dynamic loads

Generic combinations without site-specific analysis

  • Every project must be reviewed by a structural engineer
  • Pairing should be verified using IS 456:2000 and IS 1786:2008 guidelines

Follow national standards: codes and compliance

IS 456:2000

  • Governs concrete mix design, curing time, compressive strength
  • Specifies minimum grades for structural elements

IS 1786:2008

  • Covers mechanical properties of TMT bars (yield strength, elongation)
  • Ensures rib design, bendability, and chemical composition

Practical tips for MSMEs and builders

  • Test both concrete and steel at site
  • Perform cube compression tests for concrete after 28 days
  • Test yield and elongation of TMT bars from each batch
  • Use ready-mix concrete (RMC) for consistency
  • Guarantees accurate water-cement ratios and grade consistency
  • Train masons and site supervisors
  • Incorrect bar placement, insufficient cover, or improper compaction often void grade compatibility

Conclusion: a balanced match builds a lasting structure

Matching concrete and TMT bar grades is not a matter of guesswork—it is a science that influences structural performance, durability, safety, and cost. Every building, from a village school to a metro viaduct, needs the right reinforcement strategy. A mismatch can be catastrophic. But a well-considered pairing, designed in accordance with codes and conditions, offers decades of trouble-free performance.
