How to incorporate steel cladding in industrial buildings for aesthetic appeal?

Steel cladding is crucial in industrial construction, offering protection and durability and contributing significantly to the building's aesthetic appeal. By selecting the right materials—such as hot-rolled steel, Pre-Painted Galvalume Steel (PPGL), Galvalume steel (GL), and Galvanised steel (GP)—industrial structures can achieve a modern, visually appealing look while maintaining functionality and performance. Here’s how MSMEs can leverage these materials' technical properties to enhance their industrial buildings' aesthetics.

1. Selecting the appropriate material

The steel material choice for cladding should consider structural requirements, environmental conditions, and desired aesthetic outcomes. Here’s a closer look at the technical properties of each material:

Hot-rolled steel: this material is formed at high temperatures, which makes it more malleable and easier to work with for large-scale industrial applications. Its blue-grey finish and slightly rough texture lend buildings a raw, industrial aesthetic. The strength of hot-rolled steel makes it suitable for cladding applications that require substantial load-bearing capacity and resistance to impact.

• PPGL: PPGL is coated with a layer of zinc for corrosion resistance and then painted for additional protection and aesthetic purposes. The paint layer can be customised in various colours and finishes, allowing creative design options that enhance visual appeal. The combination of zinc coating and paint provides a dual layer of protection against corrosion, making PPGL ideal for industrial buildings exposed to harsh weather conditions.

• GL: galvalume steel is coated with an alloy of aluminium and zinc, offering superior corrosion resistance compared to traditional galvanised steel. The aluminium in the coating enhances the material's ability to withstand oxidation and rust, especially in environments with high humidity or salinity, such as coastal areas. The smooth, reflective surface of galvalume steel gives a modern, clean look, making it suitable for contemporary industrial designs.

• GP: GP steel is coated with a zinc layer to protect against corrosion, like PPGL, but without the extra paint layer. This material is cost-effective and provides a sleek, metallic appearance that is versatile for various industrial building designs. The zinc coating's sacrificial nature allows GP steel to offer long-lasting protection in moderate environmental conditions.

2. Designing with versatility

Steel cladding allows various design possibilities, enabling MSMEs to customise their buildings to meet specific functional and aesthetic needs. Consider the following technical design options:

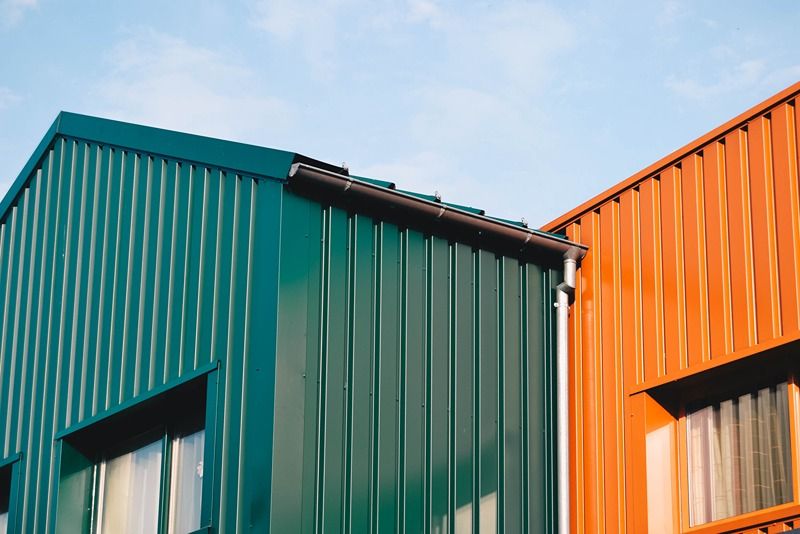

Panel orientation: the orientation of steel cladding panels—vertical, horizontal, or diagonal—can significantly impact the building's aesthetic and structural performance. Vertical panels can create a sense of height and modernity, while horizontal panels offer a more grounded, stable look. Diagonal panels can add dynamic visual interest and can also influence the structural load distribution on the cladding.

• Material combinations: combining different types of steel cladding, such as PPGL with galvalume, can achieve unique visual effects and enhance the building's durability. For instance, using galvalume steel on the building’s upper sections can protect against rain and sun exposure, while PPGL can add colour and visual interest to lower sections.

• Textural finishes: steel cladding is available in various textures, from smooth and glossy to matte and embossed. Choosing the right texture can complement the building’s overall architectural style and enhance its aesthetic appeal. Textured finishes can also help diffuse light and reduce glare, which can be particularly beneficial in bright, sunny environments.

3. Maximising cost-efficiency and performance

Balancing aesthetics with cost-efficiency is crucial for MSMEs. Here are some technical considerations to optimise both:

• Material thickness: the appropriate thickness for steel cladding is vital for performance and cost efficiency. Thicker steel sheets provide greater strength and durability but come at a higher cost. For non-structural applications, thinner sheets may be sufficient and more economical.

• Surface coatings: advanced coatings such as Polyvinylidene Fluoride (PVDF) or Silicon-Modified Polyester (SMP) can significantly extend the lifespan of steel cladding by enhancing its resistance to UV radiation and chemical exposure. These coatings are particularly beneficial in environments with high pollution levels or extreme weather conditions.

• Market analysis: staying updated on steel prices, including hot-rolled coil prices, galvanised sheet rates, and steel plate costs, can help MSMEs make informed purchasing decisions. Buying in bulk or during market downturns can result in substantial savings.

4. Enhancing sustainability and energy efficiency

Incorporating sustainable practices into steel cladding design reduces environmental impact and can enhance the building's energy efficiency. Here’s how:

• Reflective coatings: using reflective coatings on steel cladding can improve the building's energy efficiency by reducing heat absorption and cooling costs. This is particularly useful in hot climates where reducing the building's thermal load is a priority.

• Recyclable materials: steel is inherently recyclable, making it an excellent choice for environmentally conscious construction. Designing with recyclable steel materials ensures that they can be repurposed at the end of their life cycle, contributing to a circular economy.

• Insulated panels: integrating insulated steel cladding panels can improve the thermal performance of the building envelope. These panels consist of a core insulation material sandwiched between two steel layers, offering superior thermal resistance and helping to maintain a stable indoor climate.

Conclusion

The building envelope significantly influences the internal temperature by acting as a thermal barrier between the interior and exterior environments. Modern cladding systems can reduce heat transfer and minimise reliance on HVAC systems, leading to substantial energy savings over time.
